Savox
Savox SH-0255MG+

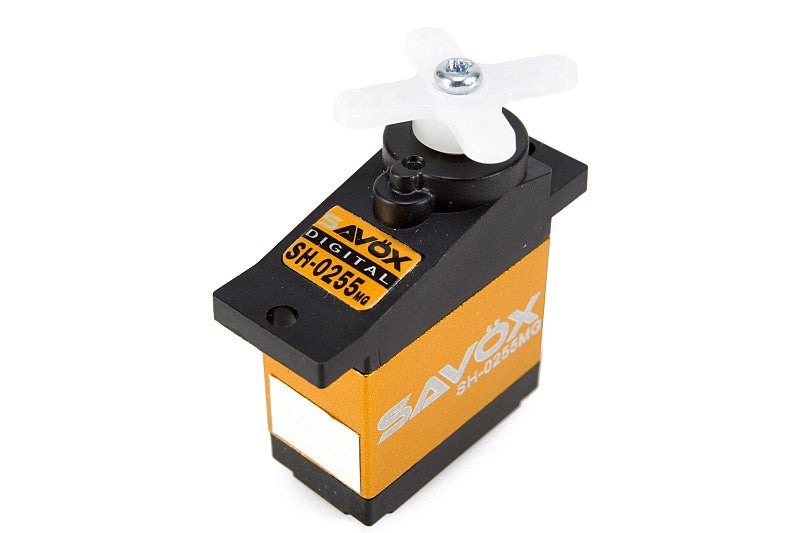

This is the Savox replacement SC-0255MG Micro Metal Gear Digital Servo.
now SC-0255MG+
Servo SAVÖX SH-0255MG+
classification: micro
Dimensions: LxWxH (mm) 22,8 x 29,4 x 12
weight: 16g
Operating voltage: V 4.8 > 6.0 volts
speed 60 ° (sec): 4,8V > 0.16 / 6V > 0.13
speed 60 ° (sec): 4,8V > 0.16 / 6V > 0.13
Force (Ncm): 4,8V > 31 / 6V > 39
Middle pulse approx (uS): 1500
Max pulse sequence (Hz): 70
Number of ball bearings 1
Middle pulse approx (uS): 1500
Max pulse sequence (Hz): 70
Number of ball bearings 1
Servo Gear: metal
Servo case: Partly aluminum
Length of cable approx (mm): 250
Number of teeth / output: 25 / Futaba
Included accessories: servo arm, fixing
Servo case: Partly aluminum
Length of cable approx (mm): 250
Number of teeth / output: 25 / Futaba
Included accessories: servo arm, fixing
Features:
- Over-spec refined design out performs ordinary micro size servo.
- The aluminum case design looks awesome and allows for cooler operating temperatures.
- Precision metal gears form a strong and solid framework.
- Strict production and quality control of plastic components ensures long life and reliability.
- Ideal for CCPM applications in 450 size heli's and park flier planes.
