Freewing F-4 Phantom V2 90mm jet EDF ARF

Aviation enthusiasts have long loved the F-4 Phantom, and Freewing is extremely proud to introduce our 90mm Super Scale Series rendition of this ultimate warfighter!  For more than 50 years, the F-4 Phantom delivered the versatile capabilities required of an all-weather frontline supersonic interceptor, fighter-bomber, SEAD, and reconnaissance platform. Less than a year after its retirement from US military service, you can still keep the F-4 Phantom flying in your RC fleet!

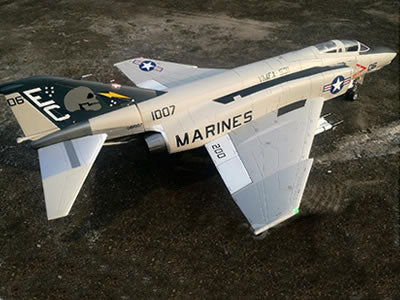

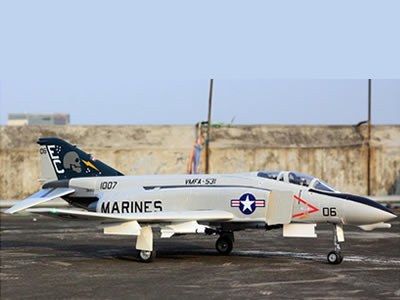

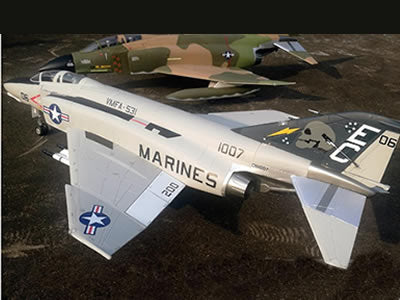

This limited edition “Ghost Grey” version honors two distinguished men in our customer family, General Keith “Shadow” Stalder who flew BuNos 061007 as part of US Marines Squadron VMFA-531 “Grey Ghosts”, and Robert “Hoot” Gibson who flew with the US Navy’s VF-111 “Sundowners” aboard the USS Coral Sea in 1972-1974. A detailed waterslide decal set is included depicting both pilot’s aircraft, and we are grateful for their input to help us ensure these decals’ accuracy! Join us in proudly flying General Stalder’s and Hoot Gibson’s aircraft’s markings, or for pilots wanting to customize their F-4 with their own scheme, we recommend Callie-Graphics.com.
RC pilots have consistently requested a large F-4 EDF jet that performs excellently out of the box without endless modifications. We developed this F-4 to deliver reliability, durability, and performance from your very first flight.  Grass operation is a hallmark of the Freewing 90mm F-4. With its wide stance, tall main tires, Oleo suspension nose strut and concealed trailing link suspension main struts, this aircraft performs well on rougher grass fields.
Super scale details include accurate dual landing lights flush-mounted into the scale operating nose wheel doors, DayBright position lights, rivet detail, static arrestor hook, and period accurate ordnance comprising four AIM-9D Sidewinders and two 370 gallon fuel tanks on removable hardpoints. Plastic details include pitot tubes, ejection seat pull rings, and molded exhaust nozzles.  The large fiberglass nose cone is magnetic and removable, and the chin pod beneath it is foam, allowing easy removable and customization for other versions (-C or late -D). An optional, highly detailed 3DPUP set (“3D Printed Upgrade Part”) is available that represents the correct Mk H-7 ejection seats and cockpit instrument panels in high detail. Download the 3D Print-ready files for free!
Such a large RC model aircraft remains easy to transport with magnetic removable fiberglass nose cone and removable wings with a convenient flexible wire harness that attaches at each wing root.  Large flaps, brass ball links, reliable control hardware, and digital servos throughout the aircraft provide positive control, and a specially designed elevator mechanism incorporates two ball bearings for smooth rotation at all times.
The Freewing 90mm F-4 Phantom II is available in two power system versions.  The Standard version requires a 6S 5000-6000 mAh LiPo battery, and is our top recommendation to pilots seeking the best balance between speed, thrust, and cost. The High Performance version requires an 8S 5000 mAh LiPo battery, and delivers increased vertical climbing performance and acceleration. The High Performance version is recommended for Advanced pilots only due to the aircraft’s higher speed envelope and heavier flying characteristics.
Own the biggest and best performing foam EDF F-4 Phantom in the world – Rejoice RC pilots, Freewing has delivered another grand slam!

Features:
    NEW!  "Ghost Grey" paint scheme honoring General Keith “Shadow” Stalder's “Grey Ghosts” and Robert “Hoot” Gibson's "Sundowners"
    NEW!  Two new decal sets for "Ghost Grey" or "Sundowners" liveries
    9-Blade EDF power system
    130A ESC
    Removable ordnance (4x AIM-9 Sidewinder missiles and 2x magnetic fuel tanks)
    Scale operating nose door and landing lights
    Durable suspension struts for grass operation
    Removable wings and stabilizers for convenient transport
    Removable magnetic fiberglass nose cone
    Digital servos throughout

Includes:
    Freewing F-4C/D Phantom II 90mm EDF Jet - KIT+

Requires:
    Brushless motor, EDF unit and ESC
    6 Channel radio
    6 Channel receiver
    6 Cell 22.2V 5000 mAh LiPo and 2 Cell 7.4V 5000 mAh LiPo batteries with EC5 connector in series or -
    Two 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector
    6 Cell compatible battery charger

Optional:
    Two 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector
    EC5 2-to-1 series adapter - ADMEC5SERIES (if 8S power system is desired)

Wingspan 1030mm / 40.15in
Length 1550mm / 61.02in
Empty Weight 2850g / 100.53oz (w/o battery)
CG (Center of Gravity) 190mm (7.5") from the leading edge of the wing at the root
Power System 6S 3748-1750kV Brushless Outrunner Motor
Electronic Speed Control 130A, EC5 Connector
Propeller / EDF 90mm 9-Blade EDF
Servos
9g metal gear digital standard with 500mm lead : nose gear steering, nose gear door
17g metal gear digital standard with 300mm lead : left aileron, right aileron, left flap, right flap
17g metal gear digital standard with 950mm lead : rudder
30g metal gear digital standard with 750mm lead : elevator
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 5000mAh LiPo with EC5 connector (required)
Required Radio 6 Channel (required)
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps Yes
Lights Yes
Hinge Type Nylon Reinforced
Material EPO Foam
Skill Level Advanced/Expert
Build Time 3-4 Hours
Recommended Environment Outdoor, 300+ foot paved runway or short manicured grass
