Extreme Flight Edge 540 EXP V2 60" Red/White scheme  - ARF

Extreme Flight

Extreme Flight Edge 540 EXP V2 60" Red/White scheme - ARF

€499.90

Product Information

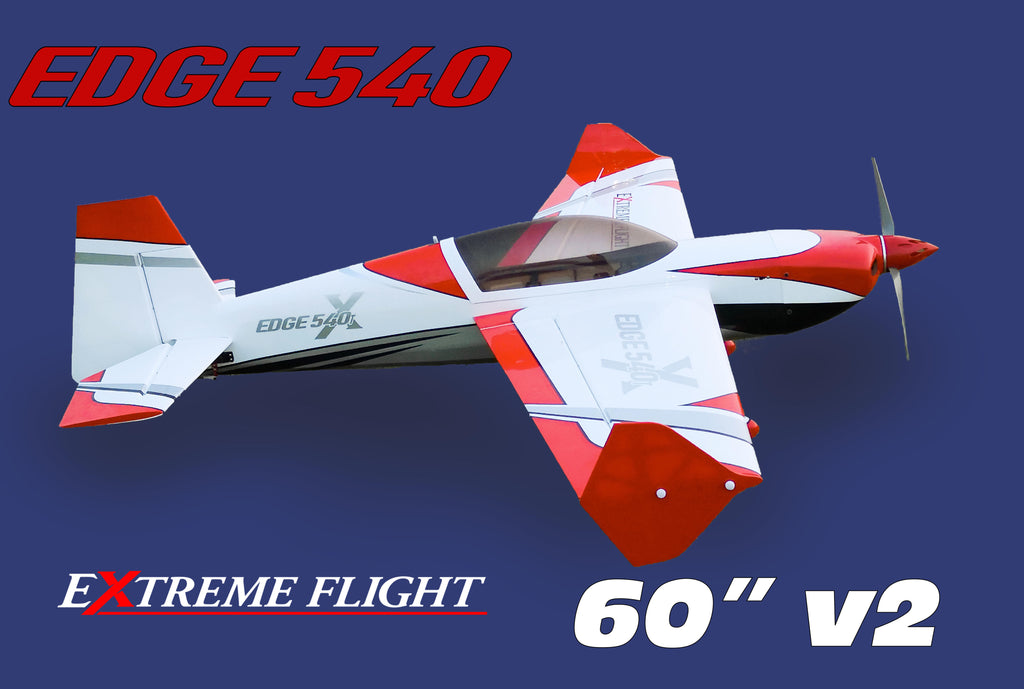

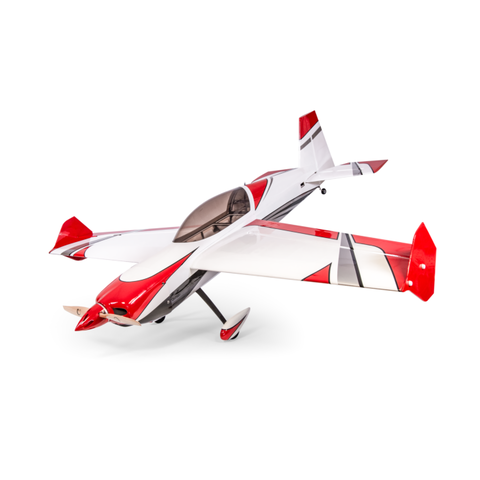

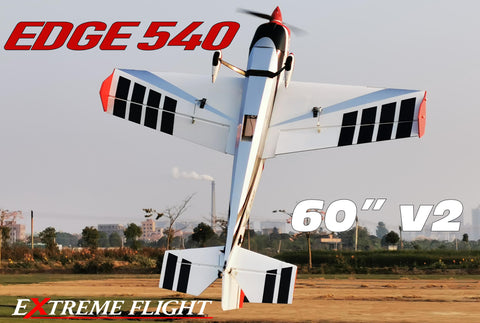

60" Edge 540T-EXP V2

Introducing the brand new Extreme Flight RC 60 inch Edge 540T EXP V2 ARF! Long regarded as the best aircraft to learn the basics of 3D flying, the Edge 540T is very forgiving for novice 3D pilots yet fully capable as your skills progress. The Edge incorporates carbon fiber and G10 composites into the structure of the airframe, resulting in a lightweight, yet twist free structure capable of handling extreme aerodynamic loads. Carbon and G10 are used in high stress areas such as the landing gear mounting structure and fuselage longerons to provide enormous strength and durability. The removable wing panels are mounted on a carbon fiber wing tube and are fastened to the fuselage with our new quick mount wing latch system. All control surfaces are pushrod driven with short linkages and use ball links for slop free actuation with no binding. Optional Side Force Generators are included and add to the already generous side area, increasing yaw axis authority and adding stability in all angles of sideslip. Expertly painted fiberglass cowl and wheel pants and 2 gorgeous high visibility Ultracote color schemes add the finishing touches and make this an airplane that you will be proud to show up at the flying field with. Couple the Edge with the Xpwr 22 and be prepared for ballistic vertical performance!


Product Information

Specifications:

Wingspan: 60 inches
Length: 58.5 inches
Wing Area: 735 sq. in.
Weight: 5 - 6lbs

Power System

Motor: Xpwr 22CC Motor
ESC: hobbywing 100A V3
Prop: Xoar 16 x 7
Battery:  Gens ace 6S 3700 mah 60C

Spinner

Spinner: EF Cyclone 63 mm spinner included!

Radio

Modern 5 channel computer radio

Servos

Servos: Qty. 4 metal geared mini servos KST DS586MG

Servo Arms

Servo Arms: Qty. 4 Light Weight EF Servo Arms - 1.25"

Servo Extensions

Qty. 2 Extreme Flight 6 inch 28 AWG for ailerons
Qty. 1 Extreme Flight 18 inch 28 AWG for rudder
Qty. 1 Extreme Flight 24 inch 28 AWG for elevator
