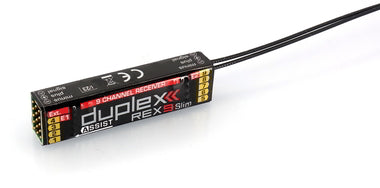

Jeti Duplex 2.4 ex REX 9 Assist SLIM receiver
This type of receiver of the REX SLIM series with 9 servo outputs. The receivers are specially designed for planes with a very small fuselage. Their compact dimensions suit all pilots who are limited by space in the model (eg F3J, F5J, etc.). This type of receiver is in the version with JETI ASSIST stabilization support.
-
- Supported protocols: PPM, EX BUS, EX Telemetry, S.Bus
- Freely programmable channel assignment of the slots
- Compact dimensions
- Full range
- Wirelessly programmable via the device overview of the Duplex DC/DS transmitters
- Programmable via the JETIBOX
- Integrated ASSIST stabilisation system with damping, heading hold, trainer mode...
- Additional, integrated telemetry: rotation angle on 3 axes, G-Force, temperature
- For fixed-wing models and multicopters
- Can output stabilised EX bus signal for e.g. CentralBoxes
- Of course also suitable for delta and flying wing models
Technical data :
- Dimensions: 15 x 12.5 x 60mm
- Weight: 12 g
- Supply voltage: 3.5 - 8.4V
- Telemetry: Yes
- Stabilisation ASSIST: Yes, with REX7 Slim Assist and REX 9 Slim Assist
- Servo slots: 9
- Antenna length: 2x 200 mm
